SFM 400

SPECS

Technical Specifications

  • Maximal Measuring Area

    300mm x 400mm (11.3/4" x 15.3/4")

  • Average measuring speed

    ~15sec per part

  • XY Accuracy

    E2 = (30 + 25L/1000)μm

  • Maximal Part Weight

    5 kg (11 lbs)

  • Operating temperature range

    10°C - 35°C (50°F - 95°F)

  • System Dimensions (WxDxH)

    710 x 1050 x 500mm (28" x 41" x 20")

  • Footprint (WxD)

    600 x 620mm (24" x 25")

  • Maximal Part Height

    130mm (5.1/8")

options

  • For laboratory use

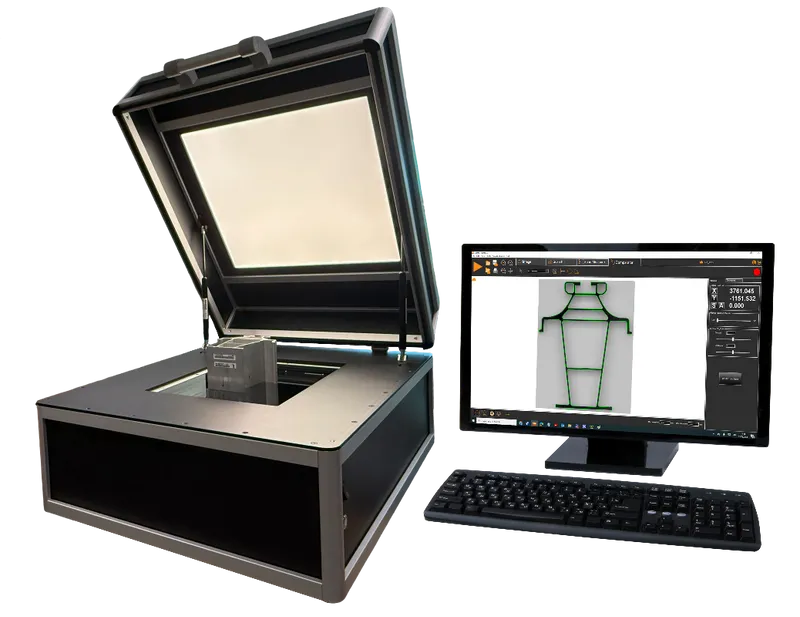

    The compact size of SFM 400 makes it suitable for office and laboratory conditions. The system comes with a computer and a touch screen monitor. It also includes desktop and cloud applications like the Measurement Data Center for storing and analyses of the measurement results.

Key Features

  • Multiple parts measured with one scan for speed and reduced workload

  • One-time CAD measurement template preparation

  • Rugged design for shop floor operation

  • Rich set of geometric dimensions and tolerances

  • Profile Tolerance with whiskers and zone visualization

  • Constructed features for comprehensive measurement

  • Open-standard data input for integration with 3rd party measuring devices

  • Open-standard data output for integration with other information and reporting systems

  • Profile, dimensional and comparator's views for unambiguous evaluation

Applications

Applications

Aluminum

Wood plastic composite

How to use

How to use

ALUMIL YU INDUSTRY A.D.

ALUMIL YU INDUSTRY A.D.

Slobodan Perin, Main Quality Controller

We have been using the EngView measuring system in our quality control processes and have had a positive experience. The system delivers consistent and reliable measurement results, which support our daily operations and contribute to maintaining high-quality standards. The cooperation with the EngView team has been professional and responsive, and their support has been timely when needed. Overall, we consider the solution a valuable tool in our workflow.

Extrusax

Extrusax

Alfredo Mira, Quality and Environment Manager

The implementation of Engview’s SFM optical profile scanners has represented a significant advancement in our quality control process for extruded aluminum profiles, complementing our existing manual measurement methods with a highly repeatable automated inspection system. This technology has allowed us to optimize response times in the metrology lab and, fundamentally, ensures full compliance with the rigorous technical requirements demanded by the automotive sector. Beyond the equipment’s performance, we would like to highlight the excellence of the technical support provided by Engview’s team. Her professional guidance and agility in resolving queries have been instrumental in the seamless integration of these systems into our protocols, demonstrating a commitment to the client that maximizes our operational efficiency and reaffirms our trust in Engview as a key technological partner.
